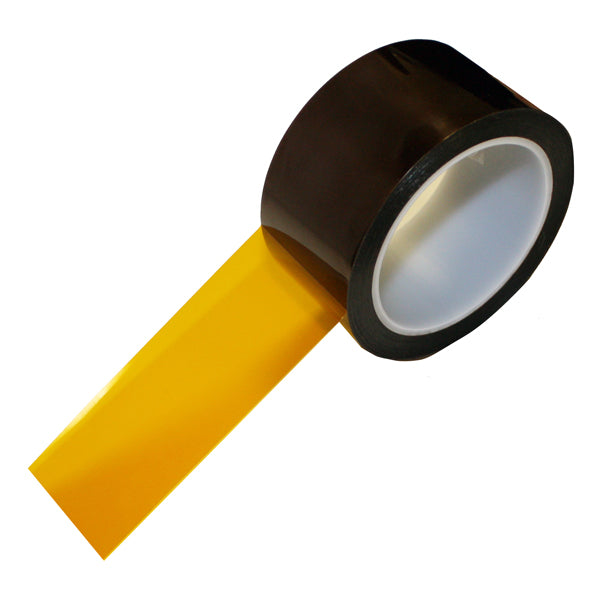

• 2" x 36 yds, 2 Mil Polyimide Tape - Polyimide High Temperature Heat Resistant Tape with Silicone Adhesive - No Residue
1 1

Tapes Master

2 Mil Kapton Tape - 2" x 36 Yds - Tapes Master Polyimide High Temperature Tape with Silicone Adhesive - 3” Core

2 Mil Kapton Tape - 2" x 36 Yds - Tapes Master Polyimide High Temperature Tape with Silicone Adhesive - 3” Core

$32.95 USD
$32.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU: 2M-HTT036200

Product CATE: KPT201

Model No: KPT201-5305

Extra 10% Off all orders More Than $50.  Coupon Code: 202510. Enter this discount code at checkout.

Free Domestic Shipping On Orders Over $35. Free International Shipping On Order Over $100.

Technical Specifications


CATE NO: KPT201 Download PDF
Model No: KPT201- 5305
Color Amber
Adhesion Type Silicone
Film Thickness 2 Mil
Adhesive Thickness 1.5Mil
Total Thickness 3.5 Mil
Adhesion to Steel 25 oz//inch
Tensile Strength 30
Elongation 40 %
Dielectric Strength 8,000 volts
UL-94 Flammability Rating V-0
Insulation Resistance 1,000,000 mega ohms
Electrolytic Corrosion Factor 1
Insulation Class centigrade 180°C
Temperature Resistance 260°C (500°F)
Resistance to acids solvents Excellent
Length 36 yards
Due to the variety of possible end-uses, the technical information, and data showed on this page should be considered representative or typical only and should not be used for specification purposes. It is the customer's responsibility to determine a product's suitability for a particular application.
Kapton tape is developed by Dupont which is a HN general purpose film with silicon adhesive. Kapton polyimide film shows excellent electrical insulation properties, excellent release surface at elevated temperatures, and excellent solvent resistant. Kapton tape remain stable and combines excellent physical, electrical, and mechanical properties; therefore, Kapton tape has been used in various applications such as 3D Printing, electronics manufacturing, spacecraft and satellite at temperatures as low as -273°C (-459°F) and as high as 400°C (752°F).

Alternative to 3M Kapton Tape

Tapes Master 2 Mil polyimide tape is alternative to 3M Kapton Tape. The tape is a HN general purpose amber color film with silicon adhesive and 3” polyethylene core.
RoHS approved and Halogen Free.

High Temperature Resistant - Flame Retardant:
Polyimide tape not only flame retardant (at temperatures as low as -273°C (-459°F) and as high as 400°C (752°F)), but also chemical and radiation resistant which protects surfaces to help reduce replacement costs

No Residue after Peeling Off:
2 Mil polyimide film does not soften at elevated temperatures, thus provides an excellent release surface at elevated temperatures. In addition, silicone adhesive's high temperature performance reduces adhesive transfer which helps to eliminate cleaning, enabling high productivity.

Protection, Insolation and Bonding:
Protection of gold fingers: of printed circuit boards during wave solder or solder dip process. Insulation and Bonding for electrical switches, motor, lithium battery under Grade H.

Surface for 3D printers:
Kapton and ABS adhere to each other very well, therefore is the recommended use of Kapton as a bed surface for 3D printers.

Easy to Use:
2 Mil Polyimide Tape is strong and conformable enabling masking of uneven surface. It is dimensionally stable at high temperatures, which prevents rework, enabling high productivity.

Application:

  • Electronics manufacturing
  • Bed surface for 3D printing
  • PCB solder masking
  • Protection of gold fingers during wave solder or solder dip process.
  • Release surface in fabrication of parts cured at elevated temperatures.
  • Powder coating under high temperature
  • Insulation and Bonding for electrical switches, motor or lithium battery…

Kapton® is a registered trademark of DuPont

The term "Kapton" is employed in this product title or description solely for descriptive purposes, signifying the specific type and attributes of the polyimide tape. We want to clarify that we do not assert any association with or endorsement from the proprietor of the Kapton trademark. This product is neither manufactured nor endorsed by DuPont, the rightful owner of the Kapton trademark.

View full details

Specification Met

  • Complies with UL510A Flame Retardant Category OANZ2/8

  • Restriction of Hazardous Substances Directive Compliant

  • REACH - Registration, Evaluation, Authorization, and Restriction of Chemicals Compliant

  • ISO 9001, ISO 14001, and ISO 45001 standards

Our tapes are produced in compliance with the European Union’s RoHS and REACH regulations, with certified third-party laboratory reports confirming the absence of restricted hazardous substances. The manufacturing facilities operate under ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety) standards, reflecting our commitment to consistent quality and responsible production practices. Should your organization require RoHS or REACH documentation, supplier qualification details, or assistance with vendor assessments, please do not hesitate to contact us. We are ready to provide the necessary support.
