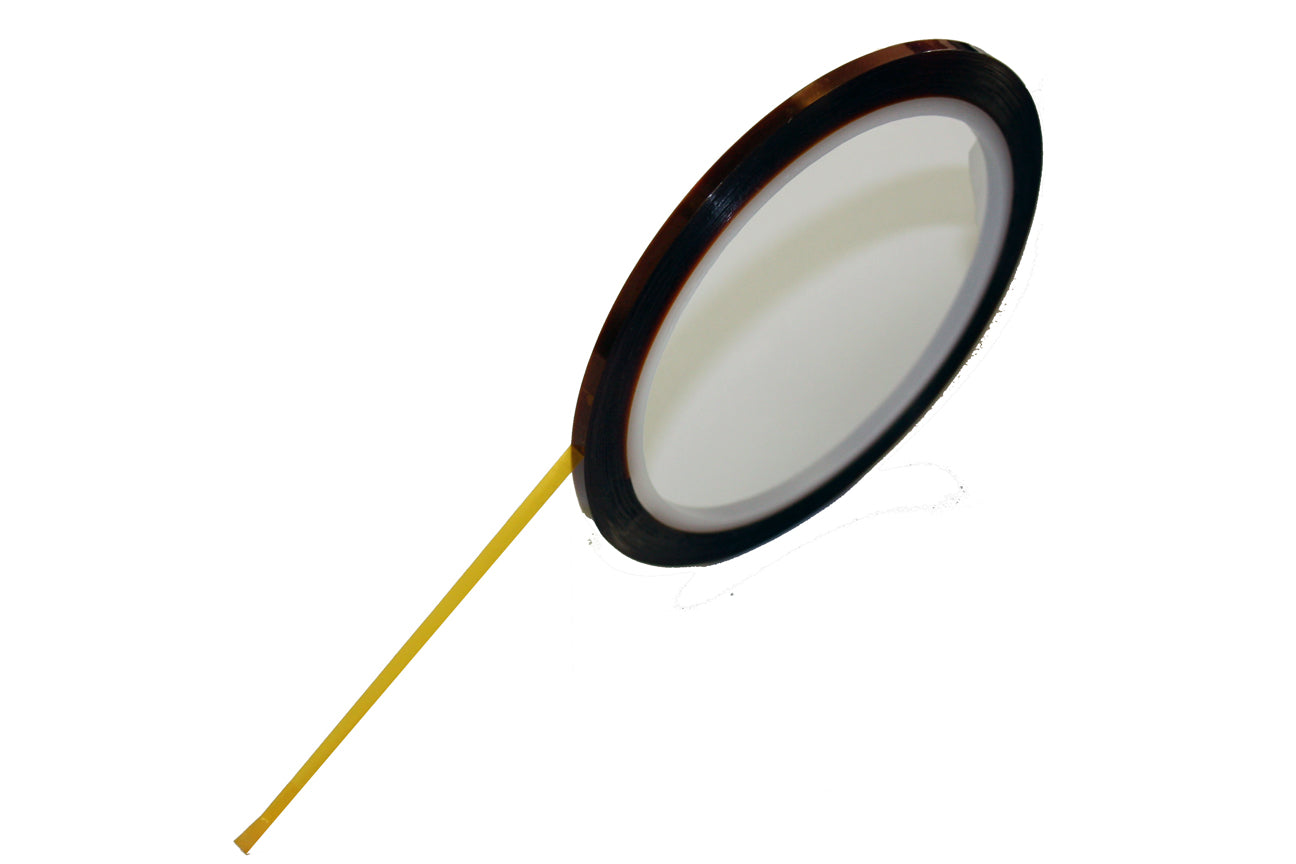

5 Mil Kapton Tape - 1/8" x 36 Yds - Tapes Master Polyimide High Temperature Tape with Silicone Adhesive - 3” Core
5 Mil Kapton Tape - 1/8" x 36 Yds - Tapes Master Polyimide High Temperature Tape with Silicone Adhesive - 3” Core
SKU: TMS-KPT-5ML-036-018
UPC:
Product CATE: KPT201
Model No: KPT201-5352
Technical Specifications
Technical Specifications
CATE NO: KPT201 | Download PDF |
Model No: KPT201- 5352 | |
Color | Amber |
Adhesion Type | Silicone |
Film Thickness | 5 Mil |
Adhesive Thickness | 1.5Mil |
Total Thickness | 6.5 Mil |
Adhesion to Steel | 25 oz//inch |
Tensile Strength | 30 |
Elongation | 40 % |
Dielectric Strength | 8,000 volts |
UL-94 Flammability Rating | V-0 |
Insulation Resistance | 1,000,000 mega ohms |
Electrolytic Corrosion Factor | 1 |
Insulation Class centigrade | 180°C |
Temperature Resistance | 260°C (500°F) |
Resistance to acids solvents | Excellent |
Length | 36 yards |
Promotions
Promotions
Offer 1:
Unlock Free Shipping
Free Shipping On Orders Over $35. No Coupon code needed.
(Domestic only)
Offer 2:
$10 off all orders - Minimum purchase of $100. Coupon code: 202410
Enter this discount code at checkout.
Shipping & Returns
Shipping & Returns
Free Shipping on all orders. No Coupon Code Needed.
Tapes Master 5 Mil polyimide tape is alternative to 3M Kapton Tape. The tape is a HN general purpose amber color film with silicon adhesive and 3” polyethylene core.
RoHS approved and Halogen Free.
High Temperature Resistant - Flame Retardant:
Polyimide tape not only flame retardant (at temperatures as low as -273°C (-459°F) and as high as 400°C (752°F)), but also chemical and radiation resistant which protects surfaces to help reduce replacement costs
No Residue after Peeling Off:
5 Mil polyimide film does not soften at elevated temperatures, thus provides an excellent release surface at elevated temperatures. In addition, silicone adhesive's high temperature performance reduces adhesive transfer which helps to eliminate cleaning, enabling high productivity.
Protection, Insolation and Bonding:
Protection of gold fingers: of printed circuit boards during wave solder or solder dip process. Insulation and Bonding for electrical switches, motor, lithium battery under Grade H.
Surface for 3D printers:
Kapton and ABS adhere to each other very well, therefore is the recommended use of Kapton as a bed surface for 3D printers.
Easy to Use:
5 Mil Polyimide Tape is strong and conformable enabling masking of uneven surface. It is dimensionally stable at high temperatures, which prevents rework, enabling high productivity.
Application:
- Electronics manufacturing
- Bed surface for 3D printing
- PCB solder masking
- Protection of gold fingers during wave solder or solder dip process.
- Release surface in fabrication of parts cured at elevated temperatures.
- Powder coating under high temperature
- Insulation and Bonding for electrical switches, motor or lithium battery…
Kapton® is a registered trademark of DuPont
